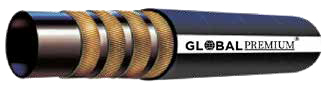

DIN EN856 4SH
Construction:
Tube: Oil resistant synthetic rubber
Reinforcement: Four high tensile steel wire spiral layers
Cover: Abrasion, ozone and weather resistant synthetic rubber
Temperature: -40°C to +120°C
Application: Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more
specifications
| Size | SAE | Inside Ø mm | Outside Ø mm | Working Pressure | Burst Pressure | Bend Radius | Length | Weight | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Mm | Inch | Dash | Min | Max | Min | Max | Bar | Psi | Bar | Psi | mm | m | Kg/m |
| 10 | 3/8 | -6 | 9.3 | 10.1 | 20.6 | 22.2 | 44.5 | 6450 | 178 | 25810 | 180 | 20/30 | 0.75 |
| 12.5 | 1/2 | -08 | 12.3 | 13.5 | 23.8 | 25.4 | 415 | 6000 | 166 | 24000 | 230 | 50 | 0.89 |
| 16 | 5/8 | -10 | 15.5 | 16.7 | 27.4 | 29.0 | 350 | 5000 | 140 | 20000 | 250 | 50 | 1.10 |
| 19 | 3/4 | -12 | 18.6 | 19.8 | 31.4 | 33.0 | 350 | 5000 | 140 | 20000 | 280 | 50 | 1.59 |
| 25 | 1 | -16 | 25.0 | 26.4 | 38.5 | 40.9 | 280 | 4000 | 112 | 16000 | 340 | 20/40 | 2.02 |
| 31.5 | 1 1/4 | -20 | 31.4 | 33.0 | 49.2 | 52.4 | 210 | 3000 | 84 | 12000 | 460 | 20/40 | 3.32 |
| 38 | 1 1/2 | -24 | 37.7 | 39.3 | 55.6 | 58.8 | 185 | 3650 | 74 | 10800 | 560 | 20/40 | 3.70 |
| 51 | 2 | -32 | 50.4 | 52.0 | 68.2 | 71.4 | 165 | 2360 | 66 | 9600 | 700 | 20/40 | 5.47 |
