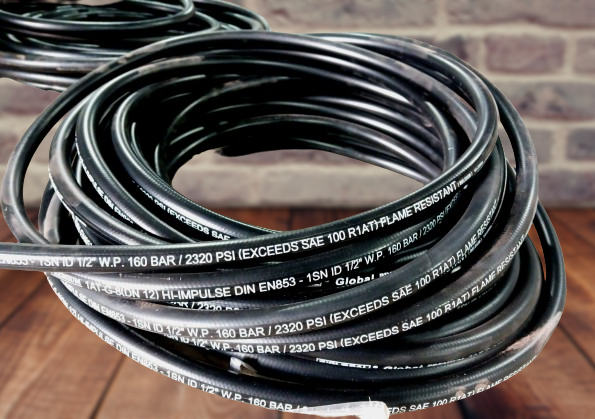

Single Wire Braid Hose Pipe
| Brand/Make | Arrowline power plus and global premium |
| Article | DIN 20022- 1SN (Excess SAE R1) Single Wire Braid |
| Material | Tube: Seamless Synthetic rubber |
| Type | Hydraulic Hose Pipe |
| Color | Black |
| Cover | Synthetic Rubber Weather, Oil, and abrasion resistant. |
| Reinforcement | 1 high tensile steel wire braid |
| Packaging Size | Roll |
| Surface | Smooth, Wrap finish |
| temperature | -40 to 125 degree Celsius |
| Application | Low Pressure Hydraulic Oils, Air & Water |

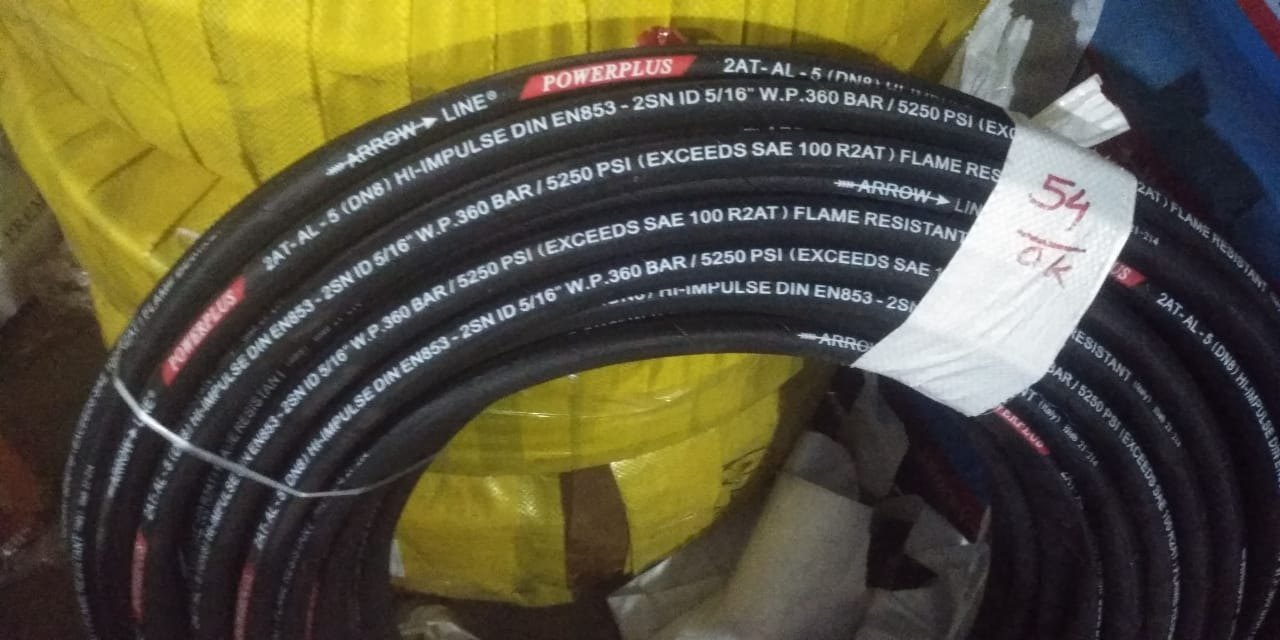

Double Wire Braid Hose
| Brand/Make | Arrowline power plus and global premium |
| Article | Double Wire Braid Hose DIN 20022- 2SN (Excees SAE R2) |
| Material | Tube: Seamless Synthetic rubber |
| Type | Hydraulic Hose Pipe |
| Color | Black |
| Cover | Synthetic Rubber Weather, Oil, and abrasion resistant. |
| Reinforcement | 2 high tensile steel wire braid |
| Packaging Size | Roll |
| Surface | Smooth, Wrap finish |
| Temperature | -40 to 125 degree Celsius |
| Application | High Pressure Hydraulic Oils, Air & Water |

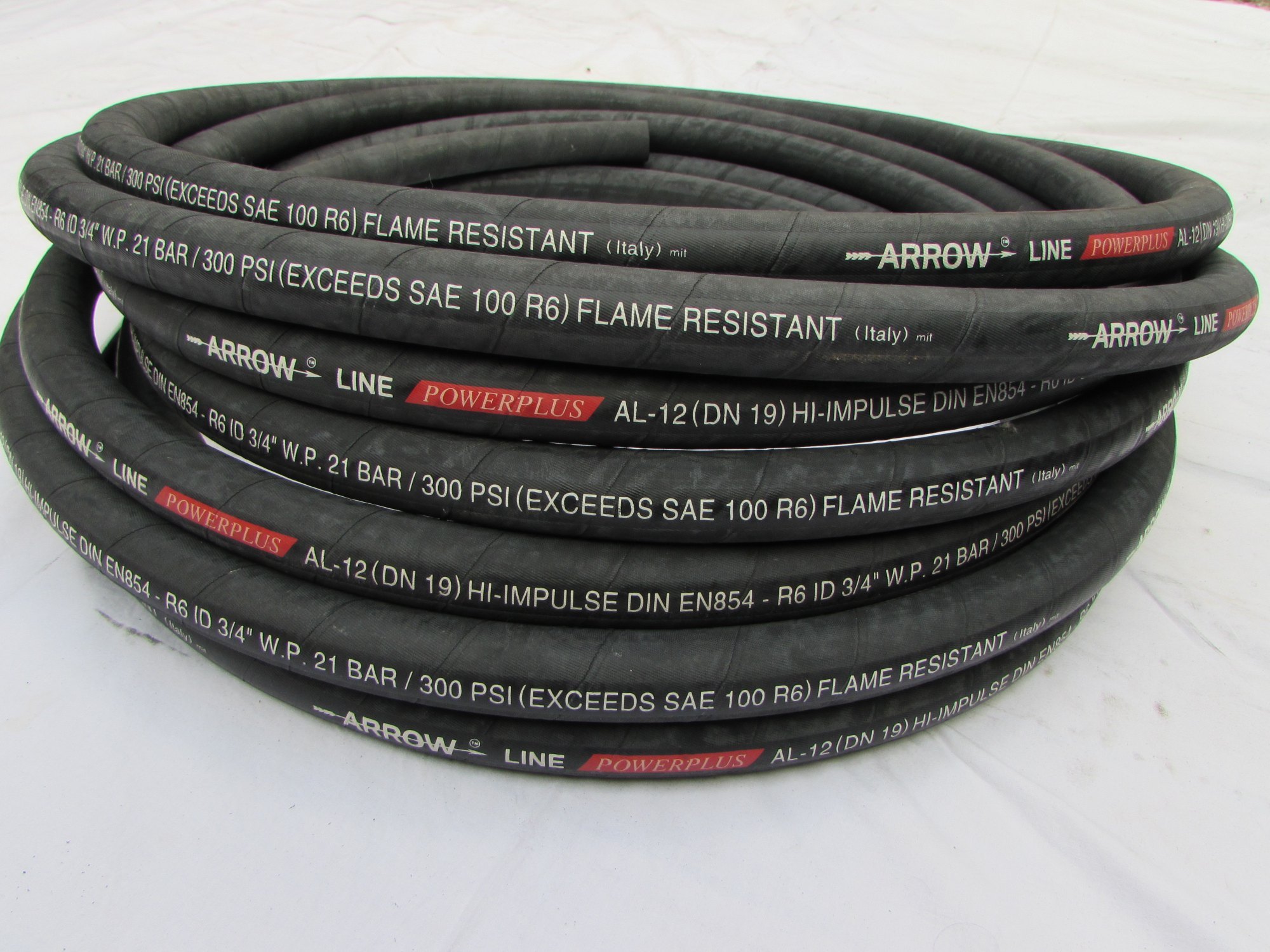

Textile Braid Hose Pipe, SAE100 R6
| Brand/Make | Arrowline power plus |
| Article | Thread Braid Hose DIN EN854 1TE |
| Material | Tube: Seamless Synthetic rubber |
| Type | Hydraulic Hose Pipe |
| Color | Black |
| Cover | Synthetic Rubber Weather, Oil, and abrasion resistant. |
| Reinforcement | 1 fiber braid |
| Packaging Size | Roll |
| Surface | Wrap finish |
| Temperature | -40 to 125 degree Celsius |
| Application | low Pressure Hydraulic Oils, Air & Water |

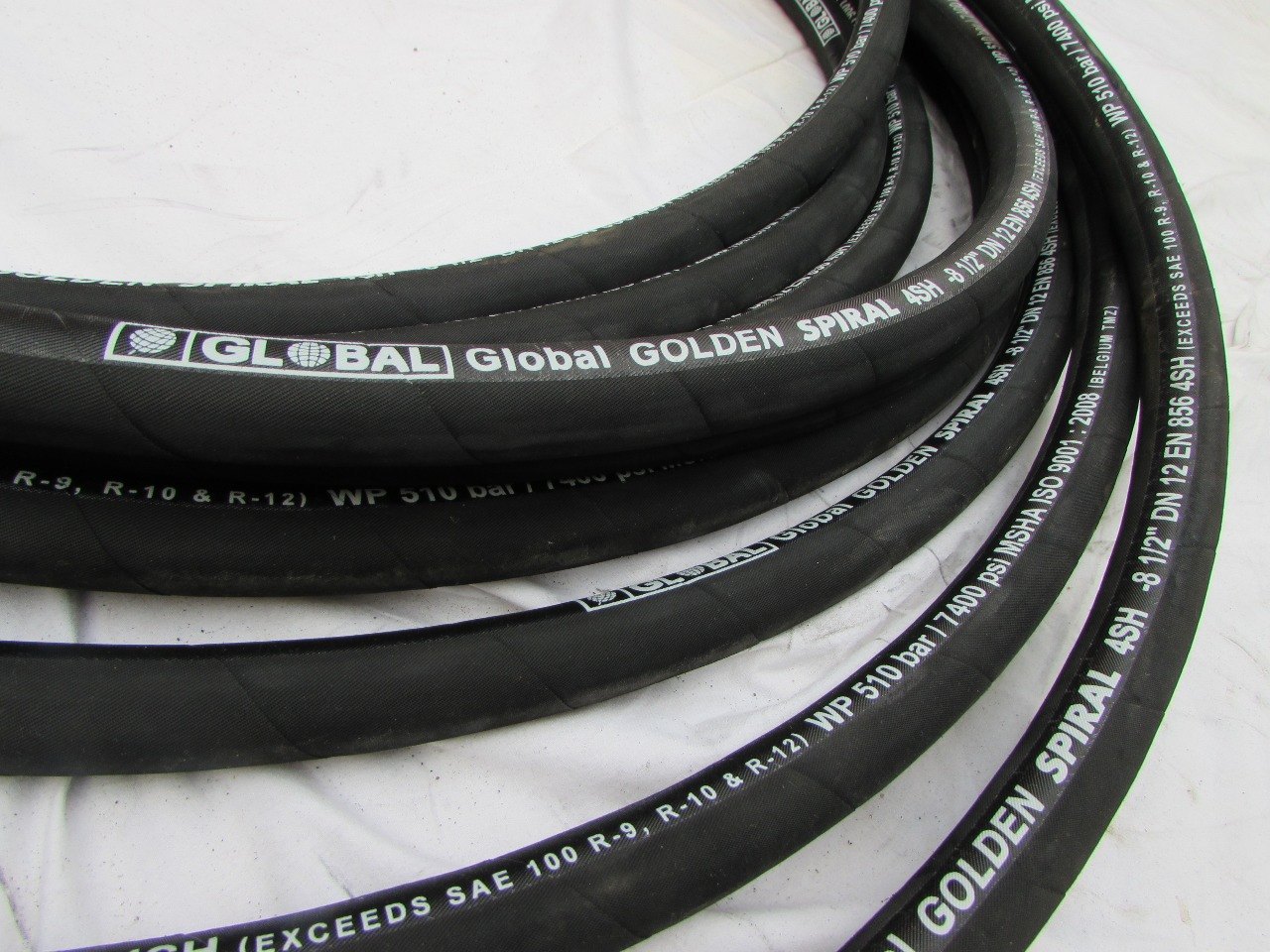

High-Pressure Spiral Hose Series
| Nominal Size | 1/2" to 2-1/2" |
| cover | Anti-abrasive synthetic rubber, resistant to oils, fuels, and atmospheric conditions. MSHA Cover |
| Color | Black |
| Brand | GLOBAL |
| Reinforcement | 4 Wire Braids |
| Usage/Application | Industrial |
| Material | Synthetic rubber, extruded whole without joints, of uniform thickness. |
| Density | 1.8-2.5 g/cm3 |
| Temperature Range | -40 to -125 Degree Celsius |
| Hardness | 50-60 Shore A |
